Installing The Tail Panel

• Pre-clean the bonding surfaces on the vehicle and on the new part with cleaning agent R2.
  CONSUMABLE SPECIFICATION



  Cleaning agent R2

  500 ml

  83190417324

• Clean the bonding surfaces on the vehicle and on the new part with cleaning agent R1.
  CONSUMABLE SPECIFICATION



  Cleaning agent R1

  100 ml, Bottle

  83192211217

• Apply adhesive K5 to bonding surfaces.
  ADHESIVE SPECIFICATION



  Body adhesive K5

  195 ml

  83195A59935

• Install new part.

  Courtesy of BMW OF NORTH AMERICA, INC.

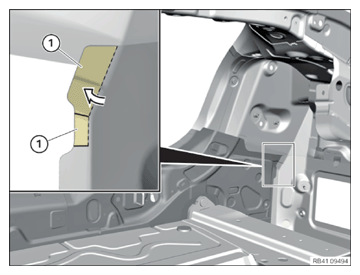

• Tie back sheet metal cutouts (1).

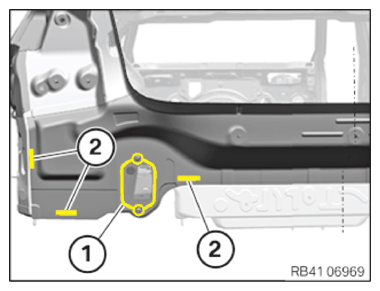

• In areas (1), make 2 bores of Ø 4.2 mm for blind rivets. For the exact position of the bores, see the following steps.

  Courtesy of BMW OF NORTH AMERICA, INC.

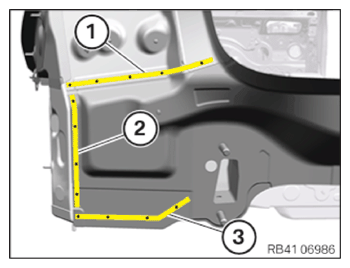

• Rivet the new part in areas (1) to (3) with blind rivets N3.
  CONSUMABLE SPECIFICATION



  Blind rivet N3  Ø 4 mm; clamping area 1-3 mm

  83190301421

  Courtesy of BMW OF NORTH AMERICA, INC.

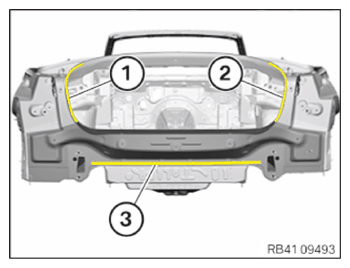

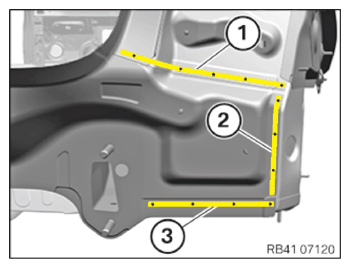

• Rivet the new part in areas (1) to (3) with blind rivets N3.

  Courtesy of BMW OF NORTH AMERICA, INC.

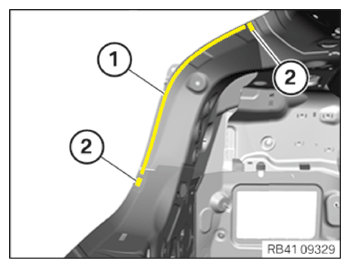

• Ensure that there is sufficient adhesive in area (2). If necessary, apply the adhesive between the new part and the body later.
• Rivet the new part in areas (1) and (2) with blind rivets N3.

  Install the blind rivets in area (1) from outside to inside.

  Courtesy of BMW OF NORTH AMERICA, INC.

• In the area (1), install 7 x punch rivets N4.
  CONSUMABLE SPECIFICATION



  Punch rivet N4  Ø 3 mm; 4 mm long

  83192457307

• In areas (2), install one punch rivet N5 each.
  CONSUMABLE SPECIFICATION



  Punch rivet N5  Ø 5 mm; 5 mm long

  83192158079

  Courtesy of BMW OF NORTH AMERICA, INC.

• In area (1), use 10 punch rivets N5.
• Observe the three panel connection:

  Observe the placement direction of the punch rivet: Place the punch rivets from inside to outside.

Courtesy of BMW OF NORTH AMERICA, INC.

Installing the EMC screw

• Drill a hole with a diameter of 4.2 mm.

  In the case of glued connections, only drill the hole after the adhesive has fully hardened.

• Screw in the EMC screw.
  CONSUMABLE SPECIFICATION



  EMC screw

  SF Plus M5x15

  83190301639

• Seal the EMC screw with the sealant.

• Press in the rear trim panel in area (1) and remove the emerging adhesive.
• Install the support for the bumper cover until the adhesive has hardened.
• Install 3 EMC screws in areas (2) after the adhesive has hardened.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work
