Removing Tail Panel Outer Section
NOTE:
Perform the steps on the left and right side.

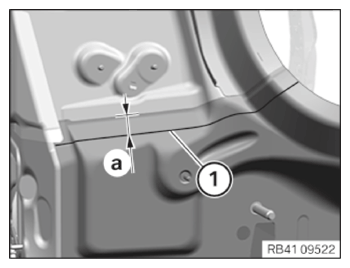

- Mark and make the separating cut (1) according to dimension a. Disconnect only the outer panel.
Dimension a = about 27 mm below the component edge of the tail light mount.
N.B.: New part is installed in area of separating cut.

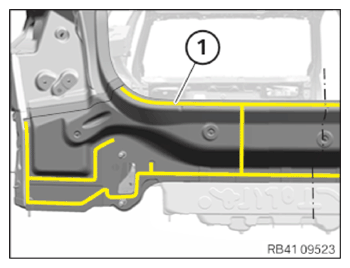

- Release the welded connections in the area (1) and remove the tail cowling.
