Preparing New Part

NOTE: RISK OF DAMAGE
Damage to the spindle drive .
Shifting the trunk lid manually can damage the spindle drive .

Only shift trunk lid slowly hand force.

NOTE: TECHNICAL INFORMATION
Adhesive technology in the area of the outer skin (not for structural adhesion):
The bonding surfaces of the new parts may not sharpened or ground.
For more information see: 41 00... BMW bonding instructions

NOTE: Perform the steps on the left and right side.

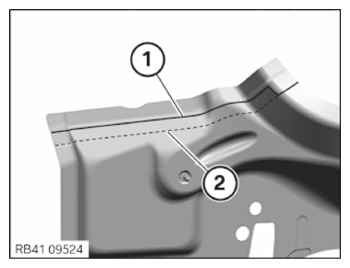

Mark the separating cut (1) on the new part to match the separating cut (2) on the vehicle + a material allowance of approx. 15 - 20 mm and carry out the cut.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Perform the steps on the left and right side.
Prepare the area (1) on the new part and on the body for joining with the bonded rivet method.

Courtesy of BMW OF NORTH AMERICA, INC.
Adjust and secure the tail cowling in combination with the tailgate and tail lights.

In the areas (1) to (3), drill the Ø 4.2 mm bores for the blind rivets.

Area	Number
1	14
2	1
3	2

Courtesy of BMW OF NORTH AMERICA, INC.

In the areas (1) to (3), drill the Ø 4.2 mm bores for the blind rivets.

Area	Number
1	2
2	1
3	14

Remove the new part and deburr the bores.

Courtesy of BMW OF NORTH AMERICA, INC.
