Remove Tail Cowling

NOTE: Perform the steps on the left and right side.

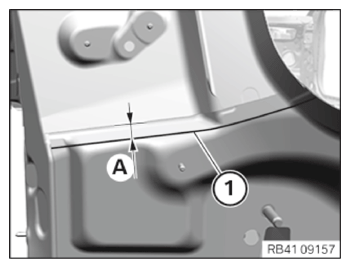

Mark severance cut (1) in accordance with dimension and disconnect. Disconnect only the outer panel.
Dimension a = approx. 23 mm below the component edge of the tail light mount.

NOTE: Install new part overlapping in area of severance cut.

Courtesy of BMW OF NORTH AMERICA, INC.

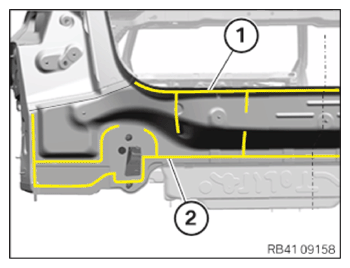

Open welded connections in areas (1) and (2).

G15333665

Courtesy of BMW OF NORTH AMERICA, INC.
