Preparing New Part
NOTE:
RISK OF DAMAGE
Damage to the spindle drive .
Shifting the trunk lid manually can damage the spindle drive .
Damage to the spindle drive .
Shifting the trunk lid manually can damage the spindle drive .
- Only shift trunk lid slowly hand force.
NOTE:
TECHNICAL INFORMATION
Adhesive technology in the area of the outer skin (not for structural adhesion):
The bonding surfaces of the new parts may not sharpened or ground.
For more information see: 41 00... BMW bonding instructions
Adhesive technology in the area of the outer skin (not for structural adhesion):
The bonding surfaces of the new parts may not sharpened or ground.
For more information see: 41 00... BMW bonding instructions
NOTE:
Perform the steps on the left and right side.

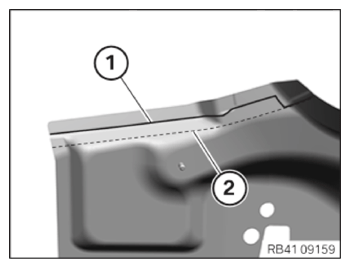

- Mark the separating cut (1) on the new part according to the separating cut on the vehicle + approx. 15 - 20 mm material allowance and cut.
(2) = Separating cut on the vehicle

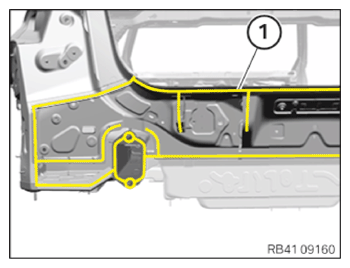

NOTE: Perform the steps on the left and right side. - Prepare the areas (1) on the new part and on the body for joining with bonded rivet method.
- Adjust tail cowling in combination with trunk lid and rear lamps and secure.

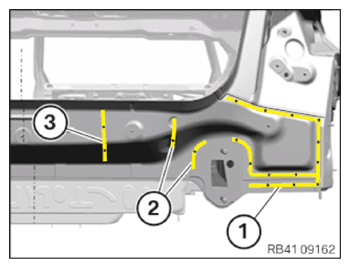

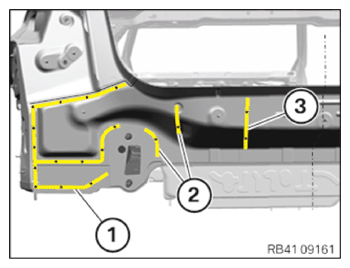

- Areas (1) to (3): Make bores of Ø 4.2 mm for the blind rivet.
Area Number 1 14 2 2 3 2 - Areas (1) to (3): Make bores of Ø 4.2 mm for the blind rivet.
Area Number 1 13 2 2 3 2 - Remove new part and deburr holes.
