Installing Tail Cowling

• Pre-clean the bonding surfaces (1) on the new part and on the vehicle with solvent cleaner R2.
  CONSUMABLE SPECIFICATION



  Cleaning agent R2

  500 ml

  83190417324

• Clean bonding surfaces (1) on vehicle and on new part with cleaning agent R1.

  Courtesy of BMW OF NORTH AMERICA, INC.

  CONSUMABLE SPECIFICATION



  Cleaning agent R1

  100 ml, Bottle

  83192211217

• Apply adhesive K5 to bonding surfaces (1).
  ADHESIVE SPECIFICATION



  Body adhesive K5

  195 ml

  83195A59935

• Install the new part and rivet in areas (1) to (3) with blind rivets N3.
  CONSUMABLE SPECIFICATION



  Blind rivet N3  Ø 4 mm; clamping area 1-3 mm

  83190301421

  Courtesy of BMW OF NORTH AMERICA, INC.

• Rivet new part in the areas (1) to (3) with blind rivets N3.

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: Perform the steps on the left and right side.

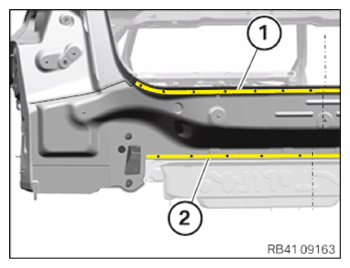

• Rivet the tail cowling in the areas (1) and (2) with punch rivets N4 and N5.

Courtesy of BMW OF NORTH AMERICA, INC.

Installing the EMC screw

• Drill a hole with a diameter of 4.2 mm.

  In the case of glued connections, only drill the hole after the adhesive has fully hardened.

• Screw in the EMC screw.
  CONSUMABLE SPECIFICATION



  EMC screw

  SF Plus M5x15

  83190301639

• Seal the EMC screw with the sealant.

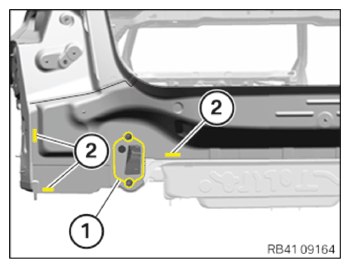

• Press in the tail cowling in area (1) and remove the emerging adhesive.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Attach the support for bumper cover.
• After the adhesive has hardened, install 3 EMC screws in the areas (2).

Follow-up work
