Removing The D-Pillar

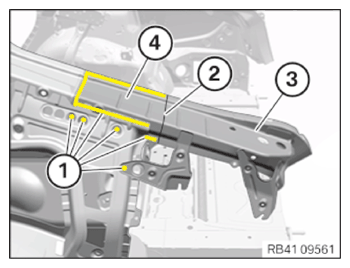

Release the welded connections in areas (1).
Make the separating cut (2) as pictured and remove the panel section (3) and (4).

G15515553

Courtesy of BMW OF NORTH AMERICA, INC.
