Preparing New Part

Remove superfluous components from new part.
Make a separating cut on the new part according to the separating cut on the vehicle.
Adjust new part (1).
NOTE: TECHNICAL INFORMATION
For additional information see: 41 00...
Welding in reinforcement plates (sheet steel)

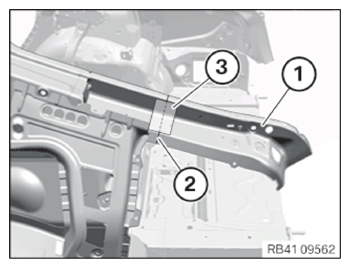

Prepare a reinforcement plate (3) for the separating cut (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Adjust the new parts together with the tail panel and the side panel.
Prepare new parts in the areas (1) for joining by welding.

Courtesy of BMW OF NORTH AMERICA, INC.
