Installing D-Pillar

• Install a reinforcement plate (1) and weld in area (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Install new parts and weld in areas (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

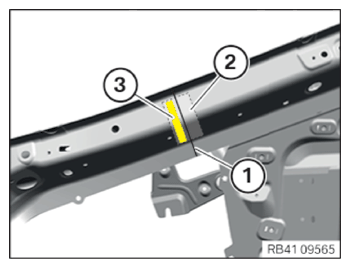

• Weld the separating cut (1).
• Weld the reinforcement plate (2) in area (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work
