Preparing New Part
- Mark and cut the separating cuts on the new part in accordance with the separating cuts on the vehicle.NOTE: TECHNICAL INFORMATION
For additional information see: 41 00...
Welding in reinforcement plates (sheet steel) - Prepare reinforcement plates at the separating cuts.

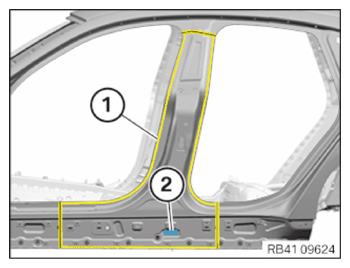

- Adjust the new part and prepare for joining by welding in area (1).NOTE: TECHNICAL INFORMATION
Adhesive technology in the area of the outer skin (not for structural adhesion):
The bonding surfaces of the new parts may not sharpened or ground.
For more information see: 41 00... BMW bonding instructions - Prepare area (2) for joining by sticking.
