Install The Outer Section Of The B-Pillar

• Pre-clean the bonding surfaces (1) on the new part and on the vehicle.
  CONSUMABLE SPECIFICATION



  Cleaning agent R2

  500 ml

  83190417324

• Clean the bonding surfaces (1) on the new part and on the vehicle.
  CONSUMABLE SPECIFICATION



  Cleaning agent R1

  100 ml, Bottle

  83192211217

  Courtesy of BMW OF NORTH AMERICA, INC.

• Apply adhesive onto the bonding surfaces (1).
  ADHESIVE SPECIFICATION



  Body adhesive K5

  50 ml

  83192158654

  NOTE: TECHNICAL INFORMATION
  For additional information see: 41 00...
  Installation of cavity sealing (expanded)
• Apply sealant onto the cavity sealing (1).
  CONSUMABLE SPECIFICATION



  Sealant D2

  290 ml

  83425A547B9

  Courtesy of BMW OF NORTH AMERICA, INC.

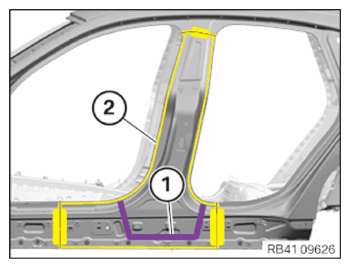

• Install the new part and the reinforcement plates and weld in area (2).

Follow-up work
