Preparing New Part
- Remove unnecessary components from new part.

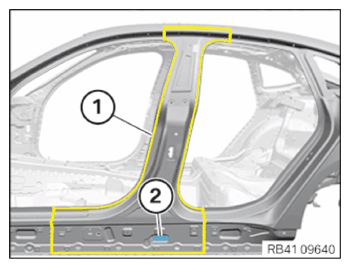

- Prepare new parts in the areas (1) for joining by welding.

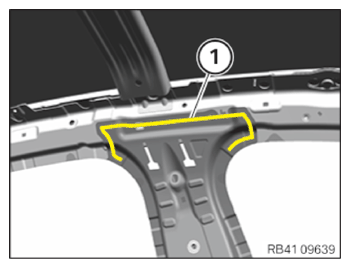

- Prepare new parts in the areas (1) for joining by welding.

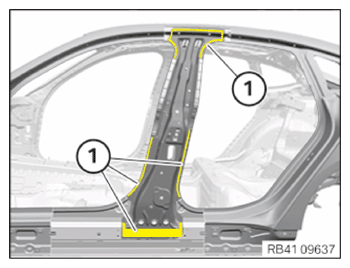

- Prepare new part in the area (1) for joining by welding.
- Mark out and make separating cuts on the B-pillar outer skin new part in accordance with the separating cuts on the vehicle.NOTE: TECHNICAL INFORMATION
For additional information see: 41 00...
Welding in reinforcement plates (sheet steel) - Prepare reinforcement plates for the separating cuts.

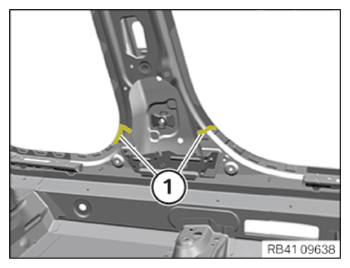

- Adjust new part and prepare for joining by welding in the area (1).NOTE: TECHNICAL INFORMATION
Adhesive technology in the area of the outer skin (not for structural adhesion):
The bonding surfaces of the new parts may not sharpened or ground.
For more information see: 41 00... BMW bonding instructions - Prepare the area (2) for joining by bonding.
