Install B-Pillar With Reinforcement

• Install the inner section of B-pillar and B-pillar reinforcement using an alignment bracket or universal fixture and fix it.

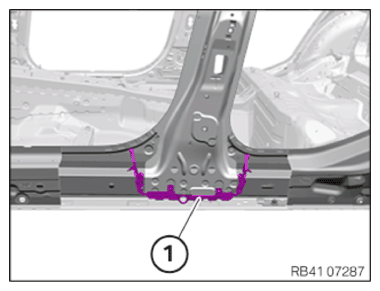

• Weld the new parts in the areas (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Weld the new parts in the areas (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Weld the new parts in the area (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: TECHNICAL INFORMATION
  For additional information see: 41 00...

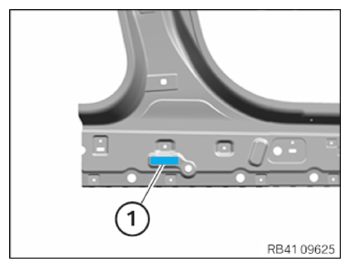

  Installation of a cavity sealing (not expanding)
• Apply sealant to the cavity sealing (1).
• Install cavity sealing (1).
  CONSUMABLE SPECIFICATION



  Sealant D2

  290 ml

  83425A547B9

  Courtesy of BMW OF NORTH AMERICA, INC.

• Pre-clean the bonding surface (1) on the new part and on the vehicle with a solvent cleaner R2.
  CONSUMABLE SPECIFICATION



  Cleaning agent R2

  500 ml

  83190417324

• Clean the bonding surface (1) on the new part and on vehicle with solvent cleaner R1.
  CONSUMABLE SPECIFICATION



  Cleaning agent R1

  100 ml, Bottle

  83192211217

  Courtesy of BMW OF NORTH AMERICA, INC.

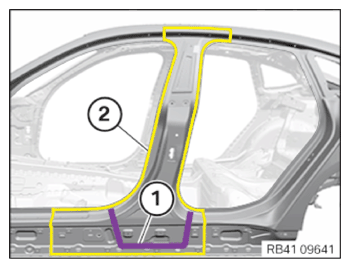

• Apply adhesive on the bonding surface (1).
  ADHESIVE SPECIFICATION



  Body adhesive K5

  50 ml

  83192158654

  NOTE: TECHNICAL INFORMATION
  For additional information see: 41 00...
  Installation of a cavity sealing (not expanding)
• Apply sealant onto the cavity sealing (1).
• Install the new part outer skin of the B-pillar and the reinforcement plates and weld in the area (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work
