Supplying The New Parts Required
NOTE:
TECHNICAL INFORMATION
- Observe the procedure for repair stage 3.
For additional information see: 41 00... Repair method for repair stage 3
- For information about stripping and rebuilding operations, refer to the surrounding text in the AIR. See the FRU number.
Preliminary work
- Prepare the following new parts (see Electronic Parts Catalog [EPC]):

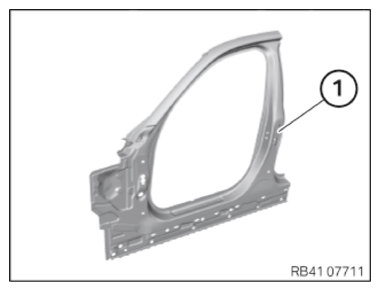

A-pillar, outer part (1)
NOTE: TECHNICAL INFORMATION
For additional information see: 41 00...
Overview of consumables in Electronic Parts Catalog - Supply the following consumables:
| Material | Quantity |
|---|---|
| Coarse thread bolt | 5 |
| Sealing compound D2 | 1 |
