Install The Outer Section Of The A-Pillar

NOTE: TECHNICAL INFORMATION
Use only approved spot welder for repair.
For additional information see: 41 00... Workshop equipment

NOTE: TECHNICAL INFORMATION
For additional information see: 41 00...
Installation of cavity sealing (expanded)

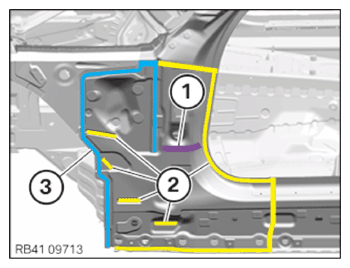

Apply sealant D2 to the cavity sealing (1).
CONSUMABLE SPECIFICATION

Sealant D2 290 ml 83425A547B9
Install the new part and the reinforcement plates.
Weld the new part and reinforcement plates in the areas (2) and (3) according to the new part preparation process.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work
