Remove A-Pillar Reinforcement

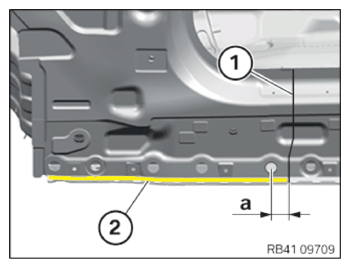

- Mark and carry out the separating cut (1) as per dimension (a). Thereby disconnect only the outer panel. Dimension a = 45 mm from the center of the hole Ø 20 mm.
- Open welded connections in area (2).

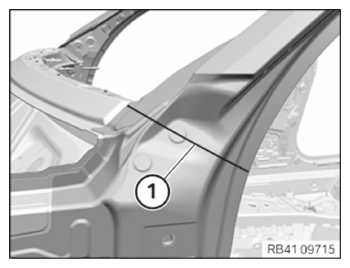

- Mark and cut the separating cut (1) as shown. Thereby disconnect only the outer panel.

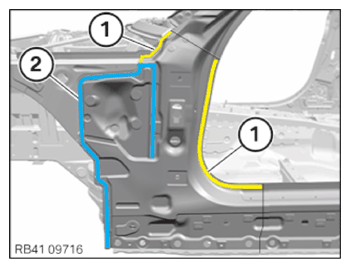

- Release the welded connections in areas (1).NOTE: TECHNICAL INFORMATION
For additional information see: 41 00...

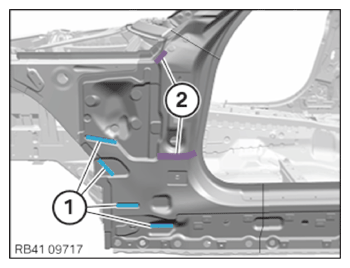

Releasing bonded connections - Release the spot-welded adhesive joints in area (2).
- Release the bonded connection in areas (1).
- Release and remove the A-pillar outer section from the cavity sealing (2).
- Remove the sheet metal cutout (3) so that it can be reused.
- Mark and make the separating cut (1) as shown.
- Release the welded connections in areas (2) and remove sheet metal cutout (3).
- Release the welded connections in areas (1).
- Release the spot-welded adhesive joints in area (2).
- Release the welded connections in areas (1).
- Detach the reinforcement of the A-pillar from the cavity sealing (2) and remove.
- Perform a rough separating cut (1) on the hinge mount.
- Release the welded connections in areas (2).
- Release the spot-welded adhesive joints in area (3).
- Remove the hinge mount (4) together with the cavity sealing (5).
- Release the welded connections in areas (1) and (2).
Remove section of the hinge mount (3).
