Preparing New Part

NOTE: TECHNICAL INFORMATION
For additional information see: 41 00... Spot-weld bonding steel components

Remove adhesive residue on the joining surfaces on the vehicle.
Remove the sheet metal cutout (3) so that it can be reused.
Make separating cut (1) on new part in accordance with separating cut on vehicle.
NOTE: TECHNICAL INFORMATION
For additional information see: 41 00...
Welding in reinforcement plates (sheet steel)
Prepare a reinforcement plate for the separating cut.
Release the welded connections in the areas (2) and remove the sheet metal cutout (3).

Courtesy of BMW OF NORTH AMERICA, INC.
Release the welded connections in areas (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Release the welded connections in areas (1) and remove the reinforcement of the A-pillar (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Adjust the new part using an alignment bracket or a universal fixture and secure it.
Prepare the areas (1) and (2) for joining by welding.
NOTE: TECHNICAL INFORMATION
For additional information see: 41 00...
Spot-weld bonding steel components
In the area (2), observe the procedure for the replacement of spot-welded adhesive joints for the standard production.

Courtesy of BMW OF NORTH AMERICA, INC.
Prepare the areas (1) and (2) for joining by welding.
NOTE: TECHNICAL INFORMATION
For additional information see: 41 00...
Spot-weld bonding steel components
In the area (2), observe the procedure for the replacement of spot-welded adhesive joints for the standard production.
To do this, prepare additional MAG plug weldings of the inside in area (2).

Courtesy of BMW OF NORTH AMERICA, INC.
In the area (1), prepare an approx. 20 mm long MAG weld seam.

Courtesy of BMW OF NORTH AMERICA, INC.
Adjust the section (1).
Prepare a reinforcement plate for the separating cut (2).
Prepare area (3) for joining by welding.

Courtesy of BMW OF NORTH AMERICA, INC.

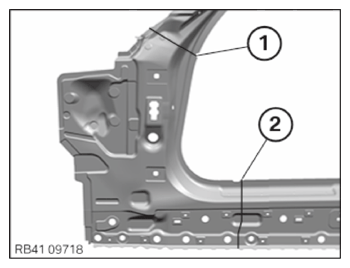

Mark the separating cuts (1) and (2) on the new part according to the separating cuts on the vehicle and cut.
NOTE: TECHNICAL INFORMATION
For additional information see: 41 00...
Welding in reinforcement plates (sheet steel)
Prepare reinforcement plates for the separating cuts (1) and (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Adjust reinforcement plates and new part to fit.
NOTE: TECHNICAL INFORMATION
For additional information see: 41 00...
Spot-weld bonding steel components

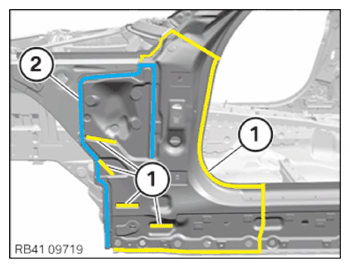

Prepare new part in the areas (1) and (2) for joining by welding.
In the area (2), observe the procedure for the replacement of spot-welded adhesive joints for the standard production.

Courtesy of BMW OF NORTH AMERICA, INC.

Replacing the coarse thread bolt and threaded weld bolts (steel surface)

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

Renew the coarse thread bolt (1) and the threaded weld bolt (2).
Parts: Coarse thread bolt, threaded weld bolt

Take the number and position from the component to be replaced or the add-ons.
Weld the coarse thread bolt (1) and threaded weld bolt (2) onto the new part.

Courtesy of BMW OF NORTH AMERICA, INC.
