Removing The Rear Outer Wheel Arch Section

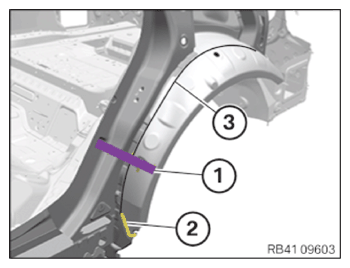

• Remove the cavity sealing (1).
• Open welded connections in area (2).
• Mark the separating cut (3) as shown and carry it out.

  Courtesy of BMW OF NORTH AMERICA, INC.

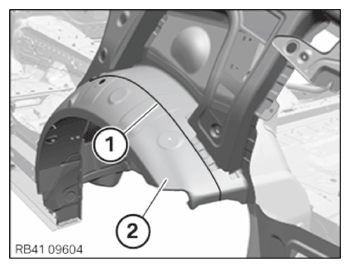

• Mark the separating cut (1) as shown and carry out.
• Remove the section (2) of the outer wheel arch section.

Courtesy of BMW OF NORTH AMERICA, INC.
