Collision - Body Panel Repair (G22, G23 & G26) (1 Of 2)
>>
41 14 Wheel Wells
>>
41 14 505 Replace The Rear Left Outer Wheel Arch Section (Side Panel Detached) (4' Series Coupe Models)
>>
Removing The Rear Outer Wheel Arch Section
Removing The Rear Outer Wheel Arch Section

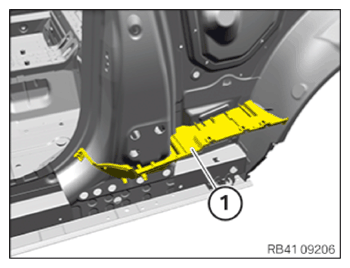

Remove the cavity sealing (1).
Courtesy of BMW OF NORTH AMERICA, INC.

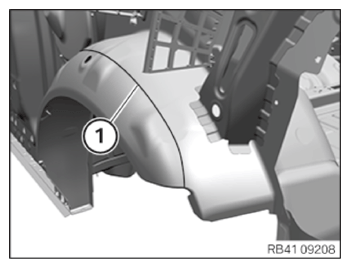

Mark and cut the separating cut (1) as shown.
Courtesy of BMW OF NORTH AMERICA, INC.

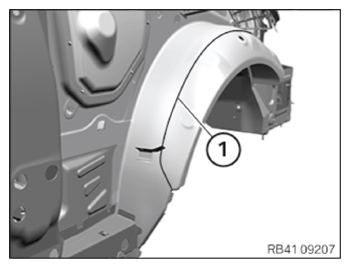

Mark and cut the separating cut (1) as shown.
Remove section from the outer wheel arch section.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
