Preparing New Part
NOTE:
TECHNICAL INFORMATION
Adhesive technology in the area of the outer skin (not for structural adhesion):
The bonding surfaces of the new parts may not sharpened or ground.
For more information see: 41 00... BMW bonding instructions
Adhesive technology in the area of the outer skin (not for structural adhesion):
The bonding surfaces of the new parts may not sharpened or ground.
For more information see: 41 00... BMW bonding instructions
- Mark the separating cut on the new part according to the separating cut on the vehicle + 20 mm added material and cut.
- Prepare the joint areas for joining by bonded rivet method.
- Adjust the new part in combination with the side panel to fit and secure.

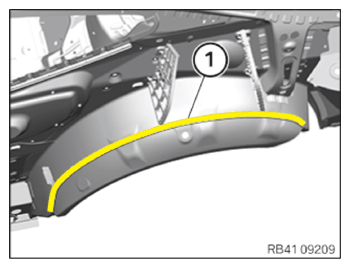

- In the area of the bonding surface, (1) set 13 bores with Ø 4.2 mm.
- Remove the new part and deburr the bore holes.
Replacing the coarse thread bolt and threaded weld bolts (steel surface)
NOTE:
Schematic diagram is for example purposes. Some parts may differ in certain details.
- Renew the coarse thread bolt (1) and the threaded weld bolt (2).
Parts: Coarse thread bolt, threaded weld bolt
Take the number and position from the component to be replaced or the add-ons.
- Weld the coarse thread bolt (1) and threaded weld bolt (2) onto the new part.
