Supplying The New Parts Required
NOTE:
TECHNICAL INFORMATION
- Observe the procedure for repair stage 2.
For additional information see: 41 00... Repair method for repair stage 2
- For information about stripping and rebuilding operations, refer to the surrounding text in the AIR. See the FRU number.
Preliminary work
- Prepare the following new parts (see Electronic Parts Catalog [EPC]):

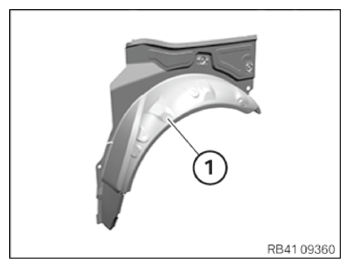

Rear outer wheel arch section (1)
Wheel well, shaped part, rear
NOTE: TECHNICAL INFORMATION
For additional information see: 41 00...
Overview of consumables in Electronic Parts Catalog - Supply the following consumables:
| Material | Quantity |
|---|---|
| Coarse thread bolt | 5 |
| Sealing compound D1 | |
| Cavity protection wax remover |
