Removing The Rear Outer Wheel Arch Section

• Remove the cavity sealings (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

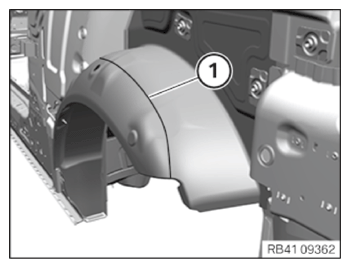

• Mark and cut the separating cut (1) as shown.

  Courtesy of BMW OF NORTH AMERICA, INC.

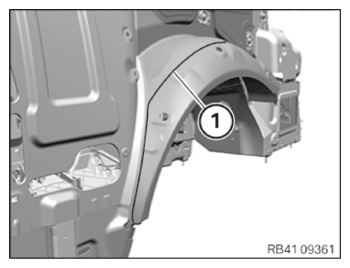

• Mark and cut the separating cut (1) as shown.
• Remove section from the outer wheel arch section.

Courtesy of BMW OF NORTH AMERICA, INC.
