Supplying The New Parts Required
NOTE:
TECHNICAL INFORMATION
- Observe the procedure for repair stage 3.
For additional information see: 41 00... Repair method for repair stage 3
- For information about stripping and rebuilding operations, refer to the surrounding text in the AIR. See the FRU number.
Preliminary work

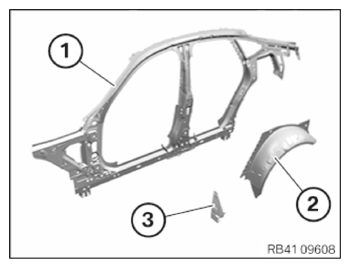

- Prepare the following new parts (see Electronic Parts Catalog [EPC]):
Side frame, center (1)
Outer wheel arch section (2)
Wheel well end plate (3)
Shaped part, C-pillar
Outer lower C-pillar shaped part
Inner lower C-pillar shaped part
NOTE: TECHNICAL INFORMATION
For additional information see: 41 00...
Overview of consumables in Electronic Parts Catalog - Supply the following consumables:
| Material | Quantity |
|---|---|
| Coarse thread bolt | 10 |
| Sealing compound D2 | 1 |
| Cavity protection wax remover |
