Remove Outer Wheel Arch Section With Reinforcement

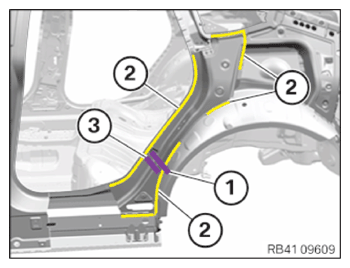

• Remove the outer cavity sealing (1).
• Release the welded connections in areas (2).
• Slacken the support of the C-pillar of the inner cavity sealing (3) and remove.

  Courtesy of BMW OF NORTH AMERICA, INC.

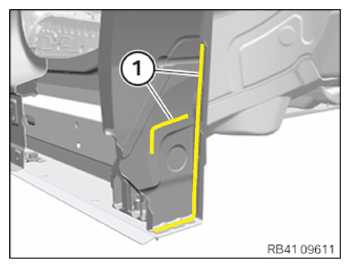

• Release the welded connections in the areas (1) and remove the retaining strap wheel well.

  Courtesy of BMW OF NORTH AMERICA, INC.

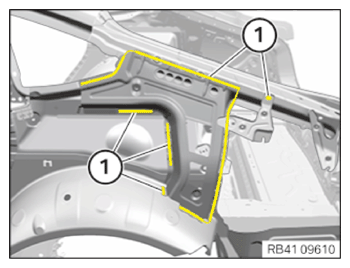

• Release the welded connections in areas (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

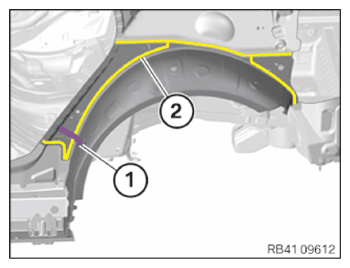

• Remove cavity sealing (1).
• Release the welded connections in the area (2) and remove the outer wheel arch section.

Courtesy of BMW OF NORTH AMERICA, INC.
