Preparing New Part

Release the new parts of unneeded components.
Adjust the new outer wheel arch section together with the side panel.

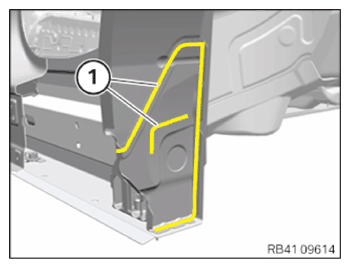

Prepare new part in the area (1) for joining by welding.

Courtesy of BMW OF NORTH AMERICA, INC.

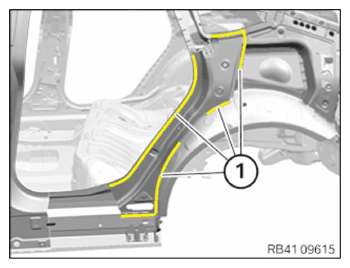

Prepare areas (1) for joining by welding.

Courtesy of BMW OF NORTH AMERICA, INC.
Adjust the new part wheel well retaining strap.
Prepare areas (1) for joining by welding.

Courtesy of BMW OF NORTH AMERICA, INC.
Adjust the new part support C-pillar and prepare in the areas (1) for joining by welding.

Courtesy of BMW OF NORTH AMERICA, INC.

Replacing the coarse thread bolt and threaded weld bolts (steel surface)

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

Renew the coarse thread bolt (1) and the threaded weld bolt (2).
Parts: Coarse thread bolt, threaded weld bolt

Take the number and position from the component to be replaced or the add-ons.
Weld the coarse thread bolt (1) and threaded weld bolt (2) onto the new part.

Courtesy of BMW OF NORTH AMERICA, INC.
