Install Outer Wheel Arch Section With Reinforcement

NOTE: TECHNICAL INFORMATION
Use only approved spot welder for repair.
For additional information see: 41 00... Workshop equipment

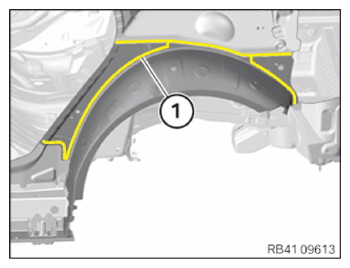

Install new part of outer wheel arch section and weld in area (1).

Courtesy of BMW OF NORTH AMERICA, INC.

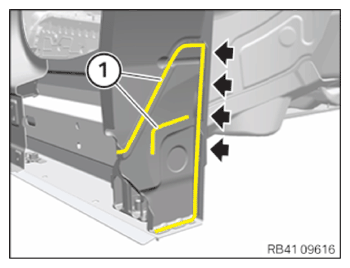

Weld the new part in areas (1).
In this process, avoid excessively high heat input in the adjacent adhesive area (arrows).

Courtesy of BMW OF NORTH AMERICA, INC.
Install the new part and weld in areas (1).

Courtesy of BMW OF NORTH AMERICA, INC.

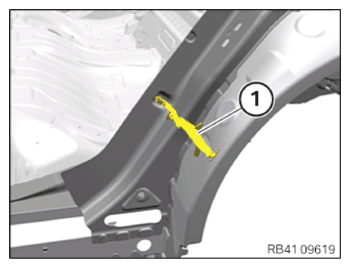

Apply sealant to the inner cavity sealing (1).
Install the inner cavity sealing (1).
CONSUMABLE SPECIFICATION

Sealant D2 290 ml 83425A547B9

Courtesy of BMW OF NORTH AMERICA, INC.

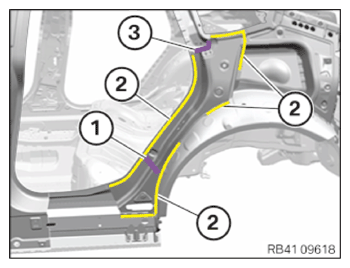

Apply sealant to the inner cavity sealing (1).
Install the new part and weld in areas (2).
Apply sealant to the upper cavity sealing (3). Install the upper cavity sealing (3).

Courtesy of BMW OF NORTH AMERICA, INC.

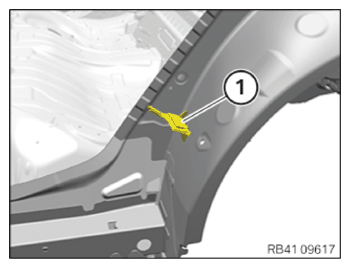

Apply sealant to the outer cavity sealing (1).
Install the outer cavity sealing (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work
