Install Outer Wheel Arch Section With Reinforcement

• Install new part (1) and weld in the area.

  Courtesy of BMW OF NORTH AMERICA, INC.

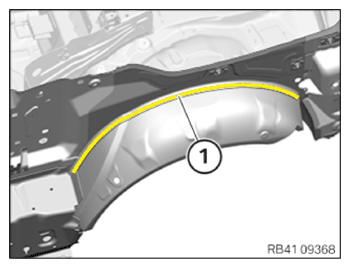

• Weld new part in the areas (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: TECHNICAL INFORMATION
  For additional information see: 41 00...
  Installation of a cavity sealing (not expanding)
• Apply sealant D1 to the new radiator tank (1). Install the radiator tank (1).
  CONSUMABLE SPECIFICATION



  Sealant D1 (seam sealing)

  310 ml

  83422409985

  Courtesy of BMW OF NORTH AMERICA, INC.

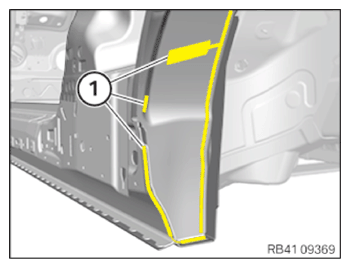

• Pre-clean the bonding surfaces (1) on the vehicle and on the new part with cleaning agent R2.
  CONSUMABLE SPECIFICATION



  Cleaning agent R2

  500 ml

  83190417324

• Clean bonding surfaces (1) on vehicle and on new part with cleaning agent R1.
  CONSUMABLE SPECIFICATION



  Cleaning agent R1

  100 ml, Bottle

  83192211217

  Courtesy of BMW OF NORTH AMERICA, INC.

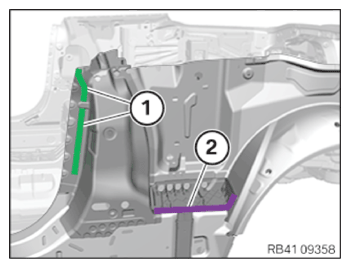

• Apply adhesive K1 to the bonding surfaces (1).
  ADHESIVE SPECIFICATION



  Body adhesive K1

  195 ml

  83190413015

• Apply sealant D1 to cavity sealing (2).

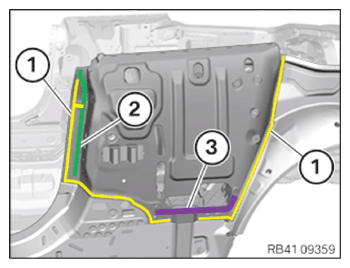

• Install new part and weld in areas (1) as per the new part preparation process.

  In the process, avoid an excessively high heat input to the adjacent adhesive area (2) and cavity sealing (3).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Apply sealant D1 to the new cavity sealings (1). Install cavity sealings (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work
