Installing The Outer Wheel Arch Section With The Reinforcement

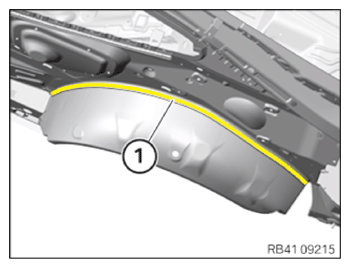

• Install new part of outer wheel arch section and weld in area (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

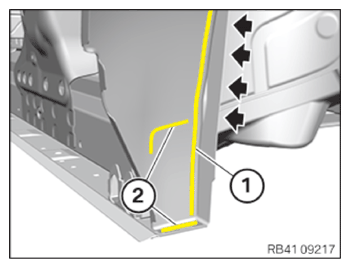

• Weld the new part in the areas (1) and (2).

  In this process, avoid excessively high heat input in the adjacent adhesive area (arrows).

  Courtesy of BMW OF NORTH AMERICA, INC.

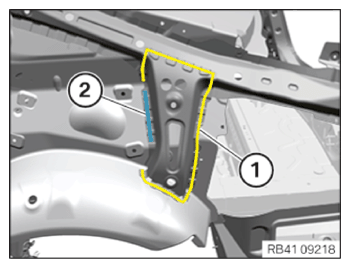

• Install the new part and weld it in areas (1) and (2).
• In area (2), note the underlying spot-welded adhesive joint.

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: TECHNICAL INFORMATION
  Avoid a very high heat input in the area (2).
  For additional information see: 41 00...
  Installation of a cavity sealing (not expanding)

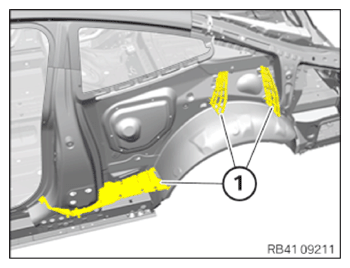

• Apply sealant to the new cavity sealings (1). Install cavity sealings (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work
