Collision - Body Panel Repair (G22, G23 & G26) (1 Of 2)
>>
41 13 Partition Panels
>>
41 13 510 Replacing Engine Compartment Bulkhead At Left (Front Wheel Well Detached) (4' Series Coupe, Convertible, And Gran Coupe Sedan)
>>
Prepare New Part
Prepare New Part

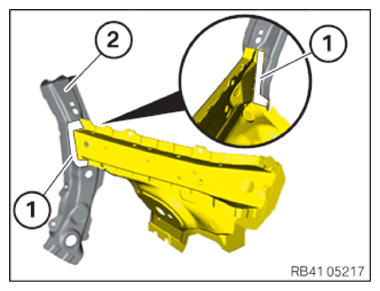

Release the welded connections in areas (1).
Remove and dispose the component (2).
Courtesy of BMW OF NORTH AMERICA, INC.

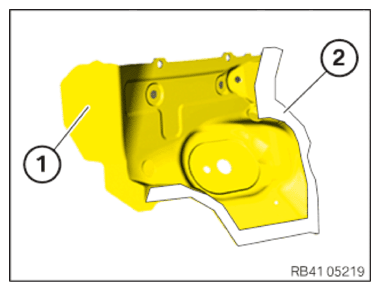

Prepare the new part (1) in the area (2) for joining by welding.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
