Collision - Body Panel Repair (G22, G23 & G26) (1 Of 2)
>>
41 13 Partition Panels
>>
41 13 510 Replacing Engine Compartment Bulkhead At Left (Front Wheel Well Detached) (4' Series Coupe, Convertible, And Gran Coupe Sedan)
>>
Installing Engine Bulkhead
Installing Engine Bulkhead
Position new part.

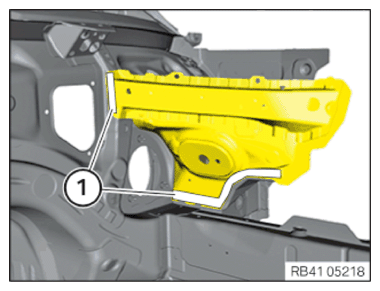

Weld the new part in the area (1).
Courtesy of BMW OF NORTH AMERICA, INC.

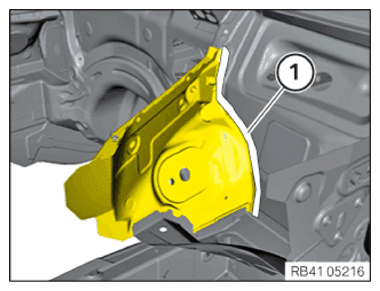

Weld the new part in areas (1).
Courtesy of BMW OF NORTH AMERICA, INC.
Follow-up work
Courtesy of BMW OF NORTH AMERICA, INC.
