Supplying The New Parts Required
Precondition
- Tail panel is removed.
Vehicle is fixed on straightening bench.
NOTE:
TECHNICAL INFORMATION
- Observe the procedure for repair stage 3.
For additional information see: 41 00... Repair method for repair stage 3
- For information about stripping and rebuilding operations, refer to the surrounding text in the AIR. See the FRU number.
Preliminary work

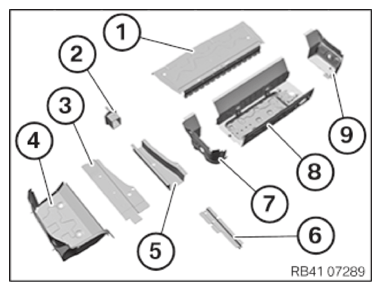

- Prepare the following new parts (see Electronic Parts Catalog [EPC]):
Rear luggage compartment floor (1)
Panel of rear bumper (2)
Side member extension at rear top (3)
Luggage compartment floor, side section (4)
Side member extension at rear bottom (5) reinforce., side member (6)
Luggage compartment well, right (7)
Luggage compartment well (8)
Luggage compartment well, left (9)
NOTE: TECHNICAL INFORMATION
For additional information see: 41 00...
Overview of consumables in Electronic Parts Catalog - Supply the following consumables:
| Material | Quantity |
|---|---|
| Adhesive K5 (50 ml) | 1 |
| Blind rivet N3 | 20 |
| Punch rivet N4 | 5 |
| Coarse thread bolt | 25 |
| Threaded weld bolt | 5 |
| EMC screw | 3 |
| Cleaning agent R1 | 1 |
| Cleaning agent R2 | 1 |
| Sealing compound D1 | 1 |
| Cavity protection wax remover |
