Removing Luggage Compartment Floor And Right Side Member

• Open welded connections in areas (1) and (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: Perform the steps on the left and right side.

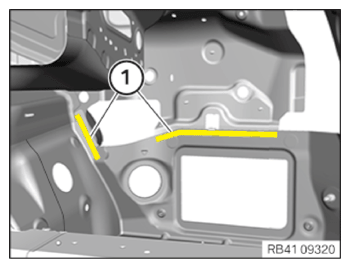

• Open welded connections in area (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Open welded connections in area (1) and remove the support.

  Courtesy of BMW OF NORTH AMERICA, INC.

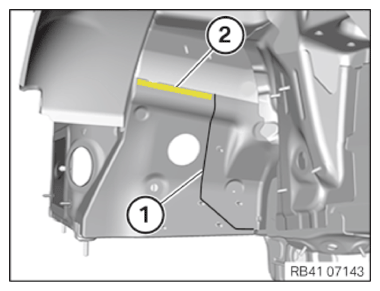

• Make the separating cut (1) according to the schematic diagram.
• Open welded connections in area (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: To provide a better overview: Shown without side panel.

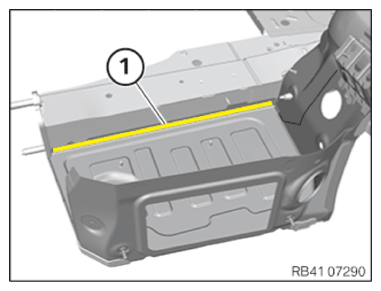

• Open welded connections in area (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

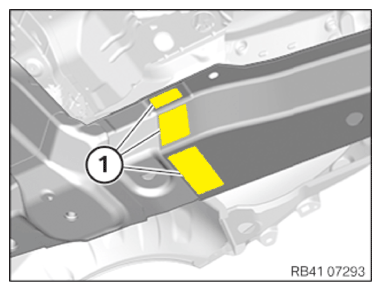

• Release welded connections in areas (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

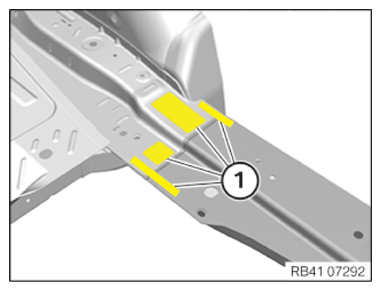

• Release welded connections in areas (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Release welded connections in areas (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

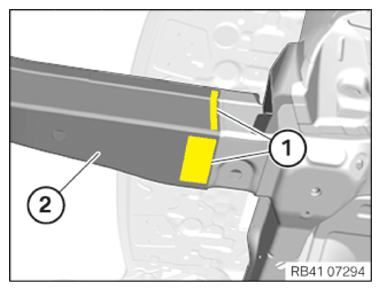

• Release the welded connections in areas (1) and remove the side member (2).

Courtesy of BMW OF NORTH AMERICA, INC.
