Preparing New Parts

Preparing the left side member

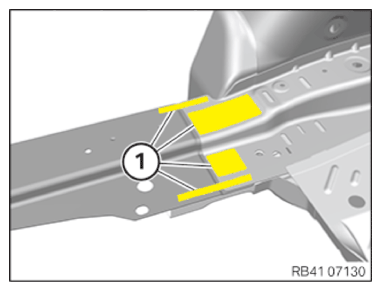

Position the new parts and prepare for welding in areas (1).

Courtesy of BMW OF NORTH AMERICA, INC.

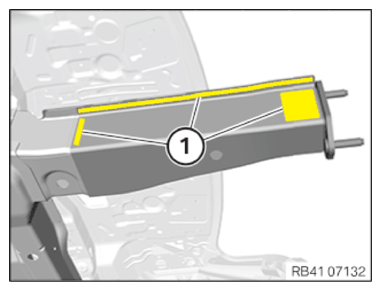

Adjust new parts to fit with alignment bracket or universal fixture and secure.
Prepare the new parts for welding in the areas (1).

Courtesy of BMW OF NORTH AMERICA, INC.

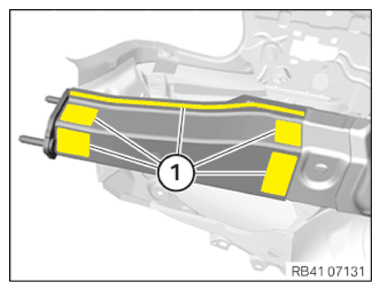

Adjust the new parts and prepare for welding in areas (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Prepare the new parts for welding in the areas (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Prepare the new parts for welding in the area (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Preparing new parts, left side luggage compartment floor

NOTE: TECHNICAL INFORMATION
Adhesive technology in the area of the outer skin (not for structural adhesion):
The bonding surfaces of the new parts may not sharpened or ground.
For more information see: 41 00... BMW bonding instructions

Mark the separating cut (1) on the new part according to the separating cut (2) on the vehicle + 20 mm added material and cut.

Courtesy of BMW OF NORTH AMERICA, INC.
Adjust the luggage compartment floor and secure.
In areas (1) and (2), prepare for joining using the bonded rivet method.

In areas (1) and (2), make 8 bores of Ø 4.2 mm for blind rivets.

Area	Number
1	5
2	3

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: To provide a better overview: Schematic diagram with partially hidden components.

Prepare area (1) for joining by glue rivet method.
In area (1), make 6 bores of Ø 4.2 mm for blind rivets.

Courtesy of BMW OF NORTH AMERICA, INC.
Prepare areas (1) and (2) for joining using the bonded rivet method.
In area (1), make a bore of Ø 4.2 mm for a blind rivet.
Remove new component. Deburr bores.

Courtesy of BMW OF NORTH AMERICA, INC.

Replacing the coarse thread bolt and threaded weld bolts (steel surface)

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

Renew the coarse thread bolt (1) and the threaded weld bolt (2).
Parts: Coarse thread bolt, threaded weld bolt

Take the number and position from the component to be replaced or the add-ons.
Weld the coarse thread bolt (1) and threaded weld bolt (2) onto the new part.

Courtesy of BMW OF NORTH AMERICA, INC.

Check ground pins and replace if necessary

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

Check the ground pins (1) for stability and renew if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

Preparing center luggage compartment floor

Adjust the new parts in combination with the tail panel to fit and secure.
Prepare area (1) for joining using welding.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Perform the steps on the left and right side.
Prepare area (1) for joining using welding.

Courtesy of BMW OF NORTH AMERICA, INC.
Prepare area (1) for joining using welding.

Courtesy of BMW OF NORTH AMERICA, INC.
Prepare area (1) for joining using welding.

Courtesy of BMW OF NORTH AMERICA, INC.
Prepare areas (1) and (2) for joining using welding.

Courtesy of BMW OF NORTH AMERICA, INC.

Replacing the coarse thread bolt and threaded weld bolts (steel surface)

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

Renew the coarse thread bolt (1) and the threaded weld bolt (2).
Parts: Coarse thread bolt, threaded weld bolt

Take the number and position from the component to be replaced or the add-ons.
Weld the coarse thread bolt (1) and threaded weld bolt (2) onto the new part.

Courtesy of BMW OF NORTH AMERICA, INC.

Check ground pins and replace if necessary

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

Check the ground pins (1) for stability and renew if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.
