Preparing New Part
NOTE:
TECHNICAL INFORMATION
Adhesive technology in the area of the outer skin (not for structural adhesion):
The bonding surfaces of the new parts may not sharpened or ground.
For more information see: 41 00... BMW bonding instructions
Adhesive technology in the area of the outer skin (not for structural adhesion):
The bonding surfaces of the new parts may not sharpened or ground.
For more information see: 41 00... BMW bonding instructions
- Mark the separating cut on the new part according to the separating cut on the vehicle + 20 mm added material and cut.
- Adjust new part in conjunction with tail panel and secure.

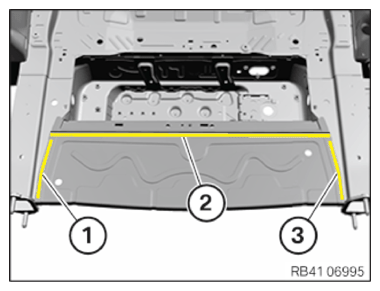

- In areas (1) to (3) drill out 20 bores of dia. 4.2 mm for blind rivet.
When positioning the bores, make sure that no production spot-welds get drilled or drilled through!
Area Number 1 4 2 12 3 4 - Remove new part and deburr holes.
Replacing the coarse thread bolt and threaded weld bolts (steel surface)
NOTE:
Schematic diagram is for example purposes. Some parts may differ in certain details.
- Renew the coarse thread bolt (1) and the threaded weld bolt (2).
Parts: Coarse thread bolt, threaded weld bolt
Take the number and position from the component to be replaced or the add-ons.
- Weld the coarse thread bolt (1) and threaded weld bolt (2) onto the new part.
