Remove The Luggage Compartment Floor, Right

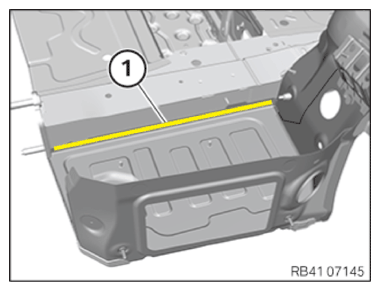

• Make the separating cut (1) according to the schematic diagram.
• Open welded connections in area (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Release welded connections in areas (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: To provide a better overview: Schematic diagram with partially hidden components.
• Open welded connections in area (1) and remove the support.

Courtesy of BMW OF NORTH AMERICA, INC.
