Prepare New Part

• Mark the separating cut (1) on the new part according to the separating cut (2) on the vehicle + 20 mm added material and cut.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Adjust the luggage compartment floor and secure.
• Prepare the joints in areas (1) and (2) using the bond-and-rivet method.
• In areas (1) and (2), make 8 x bores of Ø 4.2 mm for the blind rivet.

  Area	Number
  1	4
  2	3

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: To provide a better overview: Schematic diagram with partially hidden components.

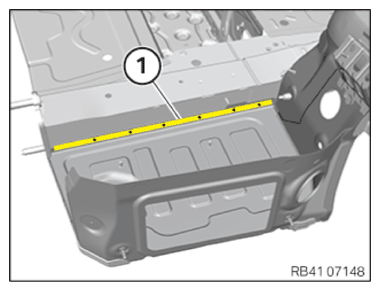

• Prepare area (1) for joining by glue rivet method.
• In area (1), set 6 bores Ø 4.2 mm for the blind rivet.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Prepare areas (1) and (2) for joining using the bonded rivet method.
• In area (1), set a bore Ø 4.2 mm for the blind rivet.
• Remove new component. Deburr bores.

Courtesy of BMW OF NORTH AMERICA, INC.

Replacing the coarse thread bolt and threaded weld bolts (steel surface)

• Renew the coarse thread bolt (1) and the threaded weld bolt (2).

  Parts:  Coarse thread bolt, threaded weld bolt

  Take the number and position from the component to be replaced or the add-ons.

• Weld the coarse thread bolt (1) and threaded weld bolt (2) onto the new part.

Courtesy of BMW OF NORTH AMERICA, INC.

Check ground pins and replace if necessary

• Check the ground pins (1) for stability and renew if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.
