Removing The Left Luggage Compartment Floor

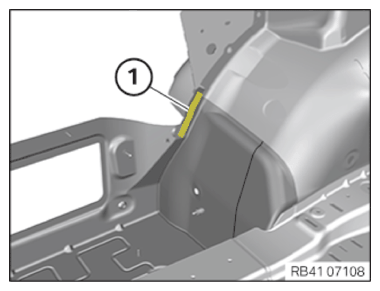

• Make the separating cut (1) according to the schematic diagram.
• Open welded connections in area (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Open welded connections in area (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Open welded connections in area (1) and remove the support.

Courtesy of BMW OF NORTH AMERICA, INC.
