Removing The Left Luggage Compartment Floor

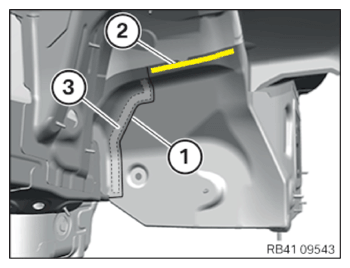

- Make the separating cut (1) as shown.
Select the separating cut (1) so that the area (3) can be used for overlapping joining.
- Open welded connections in area (2).NOTE: To provide a better overview: Shown without side panel and without tail panel.
- Open welded connections in area (1).
- Open welded connections in area (1).
- Open welded connections in area (1) and remove the support.
