Preparing New Part

• Mark the separating cut (1) on the new part according to the separating cut (2) on the vehicle + 20 mm added material and cut.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Adjust new part to fit and secure.
• Prepare area (1) for joining by welding.

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: To provide a better overview: Shown without side panel and without tail panel.

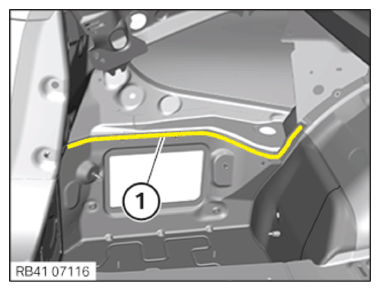

• Prepare area (1) for joining by welding.

  Courtesy of BMW OF NORTH AMERICA, INC.

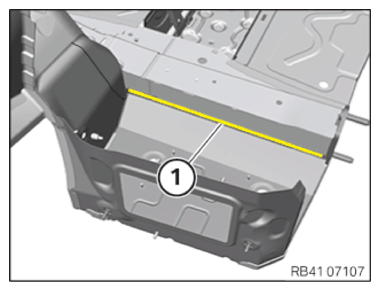

• Prepare area (1) for joining by welding.

  Courtesy of BMW OF NORTH AMERICA, INC.

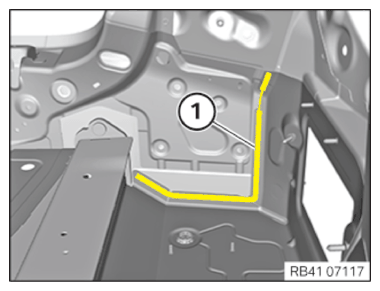

• Prepare area (1) for joining by welding.

Courtesy of BMW OF NORTH AMERICA, INC.

Replacing the coarse thread bolt and threaded weld bolts (steel surface)

• Renew the coarse thread bolt (1) and the threaded weld bolt (2).

  Parts:  Coarse thread bolt, threaded weld bolt

  Take the number and position from the component to be replaced or the add-ons.

• Weld the coarse thread bolt (1) and threaded weld bolt (2) onto the new part.

Courtesy of BMW OF NORTH AMERICA, INC.

Check ground pins and replace if necessary

• Check the ground pins (1) for stability and renew if necessary.
