Prepare New Part
- Perform the separating cuts on the new part according to the separating cuts on the vehicle.NOTE: TECHNICAL INFORMATION
For additional information see: 41 00...

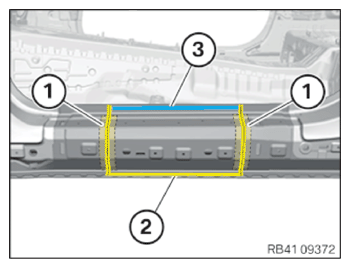

Welding in reinforcement plates (sheet steel) - At the separating cuts, prepare reinforcement plates (1).
- Adjust the new part and reinforcement plates (1) and, in areas (2) and (3), prepare for joining by welding.NOTE: TECHNICAL INFORMATION
For additional information see: 41 00...
Spot-weld bonding steel components - In area (3), follow the procedure for replacing spot-welded adhesive joints for standard production.
