Repair Solution For Straight Shank/Hexagon Rivet Nut Rep-Rep-RAGRP41-4105504 - V.4 (4' Series Coupe, Convertible, And Gran Coupe Sedan)
Protective measures!
- Wear safety goggles
- Wear protective gloves
Attention!
To prevent the material from tapering, do not drill out the rivet head.

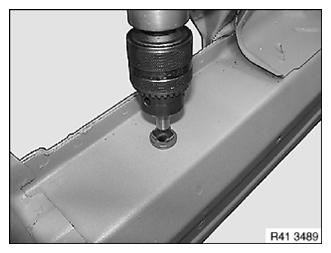

- Carefully spot-drill rivet head with a larger drill bit/countersink
Attention!
Avoid paint damage

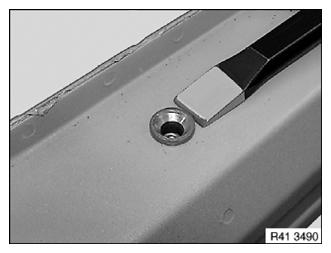

- Knock rivet head away with a chisel
- Punch through rivet shank into cavity, remove if necessary

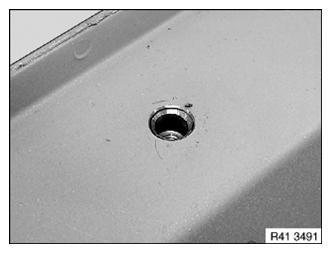

- Clean component, eliminate paint damage if necessary
If the rivet shank can be removed:
Attention!
To avoid corrosion, stop chips/shavings with cavity sealant.
Please observe the notes on corrosion protection. Refer to PROCESSING OF 2K-PU-CAVITY FOAM REP-ALG-RAGRP41-4100X01 - V.2 (4' Series coupe, convertible, and Gran Coupe sedan) .

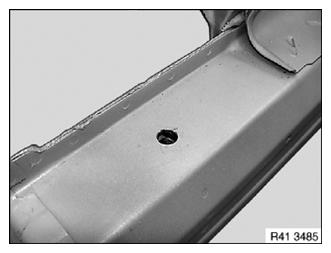

- Preserving cavity
If the rivet shank cannot be removed:
WARNING: Injury hazard!
Please observe the NOTES ON CAVITY FOAM .Attention!
To avoid corrosion and rattling noises, stop chips/shavings and rivet nut shank with cavity foam.
Remove foam remnants with isohexane (cleaning benzene).

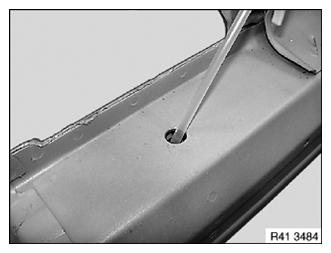

- Stop rivet shank by means of specific foaming
- Set rivet nut with hand rivet gunNOTE: Fit rivet nut as quickly as possibly, ideally before the cavity foam hardens.

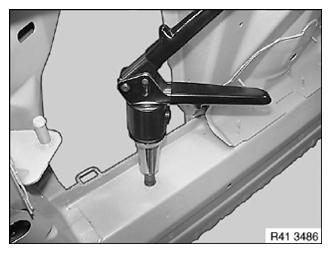

Hexagon head/straight shank rivet nut (up to thread M8) with hand rivet gun ZS308
Attention!
Follow manufacturer's operating instructions.
Make sure rivet nut correctly contacts component.

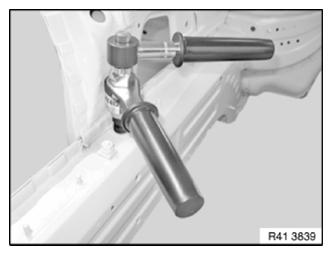

NOTE: According to the manufacturer, the tool shown is suitable for threads up to M8 (see S-Gate/dealer's equipment catalog).Hexagon head/straight shank rivet nut (up to thread M12) with hand rivet gun MB512
Attention!
Follow manufacturer's operating instructions.
Make sure rivet nut correctly contacts component.
NOTE: According to the manufacturer, the tool shown is suitable for threads up to M12 (see S-Gate/dealer's equipment catalog).
