Installing the hold-down buffer for the convertible top

• Remove adhesive residue on the convertible top compartment lid in the area (1).
• Clean bonding surface (1) with the cleaning agent R2.

CONSUMABLE SPECIFICATION

Cleaning agent R2

500 ml

83190417324

Courtesy of BMW OF NORTH AMERICA, INC.

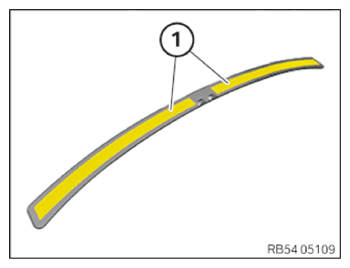

• Detach the liner (1) from the hold-down buffer.

  Courtesy of BMW OF NORTH AMERICA, INC.

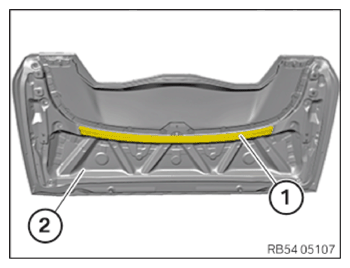

• Position the hold-down buffer (1) on the convertible top compartment lid (2) and press it on.

Courtesy of BMW OF NORTH AMERICA, INC.
