Seats -- Repair (G22, G23 & G26)
>>
52 26 Rear Seat, Through-Loading
>>
52 26 012 Removing and installing/replacing the right rear seat backrest (4' Series coupe models)
>>
Remove the right rear seat backrest
Remove the right rear seat backrest
Preliminary work
Refer to
REMOVING RIGHT BACKREST SIDE SECTION
.
Precondition
Right rear seat backrest folded down

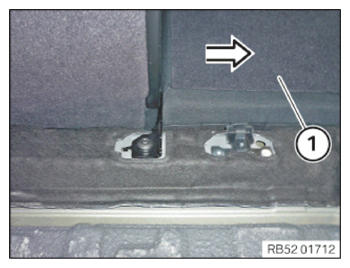

Loosen screw (1).
Courtesy of BMW OF NORTH AMERICA, INC.

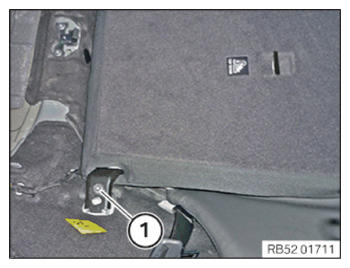

Feed out the right rear seat backrest (1) in the direction of the arrow.
Courtesy of BMW OF NORTH AMERICA, INC.
