Remove the rear panel from the front seat backrest

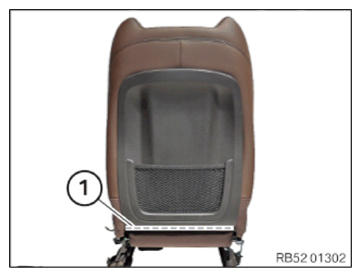

• Unclip the edge stripping of the seat cover in area (1) with a suitable tool.

  Courtesy of BMW OF NORTH AMERICA, INC.

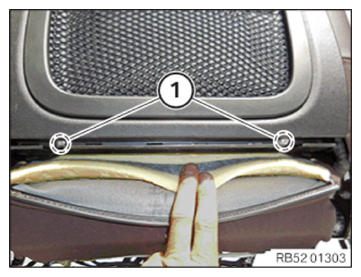

• Loosen screws (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Slip the rear panel downwards (1) and pull it out along the guides (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

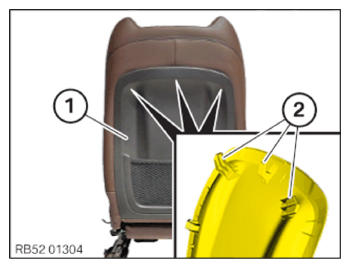

• Unclip and remove the rear panel (1) on the clamps (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

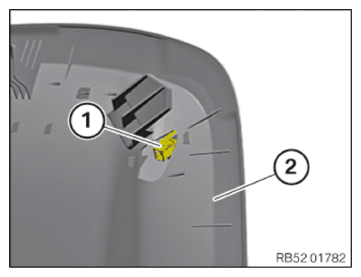

• G28:

Release connector (1) of rear panel (2) from the seat wiring harness.

Courtesy of BMW OF NORTH AMERICA, INC.
