Removing the guide sleeve for the front head restraint

NOTE: Description is for left component only. Procedure on the right side is identical.

Preliminary work

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.
NOTE: The description is provided only at one component. The procedure is the same for all other components.

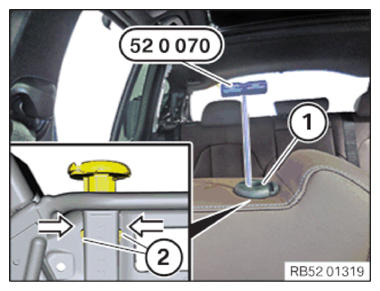

G14644212Courtesy of BMW OF NORTH AMERICA, INC.
