Installing the shoulder

• Replace the parapet.

  Parts:  shoulder

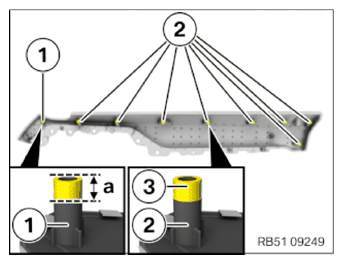

• Shorten the welding pin (1) on the new parapet by the dimension (a).
  TECHNICAL DATA SPECIFICATION



  Shorten the welding pin
  Dimension a	3 mm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Saw off each welding pin (2) on the new parapet along the molding (3).
• Check that the welding pins (2) do not extend beyond the door trim panel.

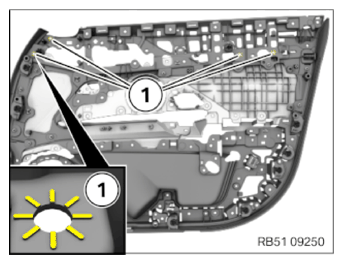

• Remove the moldings (1) with a suitable tool.

Courtesy of BMW OF NORTH AMERICA, INC.

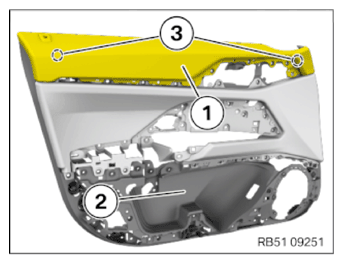

• Guide the parapet (1) into the front door trim panel (2) and position correctly.
• Clip the parapet (1) into the detents (3).

  Courtesy of BMW OF NORTH AMERICA, INC.

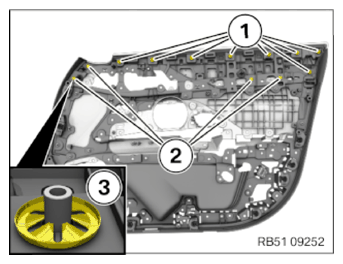

• Fasten the parapet with repair screws (1) and lock washer (3).
• Tighten the repair screws (1).
  TIGHTENING TORQUE SPECIFICATION



  Shoulder to door trim panel
  Screw	Tightening torque	2 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Fix welding pins (2) with the shown lock washer (3).
  CONSUMABLE SPECIFICATION



  Lock washer

  Outside diameter: 20.5 mm, Shaft diameter: 6 mm,

  07147295776

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to REPLACING INNER DOOR OPENER .
• Refer to INSTALLING INNER DOOR OPENER .
• Refer to INSTALLING THE LED MODULE ON THE REAR DECORATIVE STRIP .
• Refer to INSTALLING LED MODULE AT THE FRONT DECORATIVE STRIP .
• Refer to INSTALLING THE LED MODULE OF THE REAR DOOR HANDLE .
• Refer to FASTENING THE REAR DOOR WIRING HARNESS .
• Refer to INSTALLING THE SOUND INSULATION ON FRONT DOOR TRIM PANEL .
• Refer to INSTALLING THE FRONT DOOR TRIM PANEL .
