Body Equipment -- Repair (G22, G23 & G26) (2 Of 3)
>>
51 24 Trunk Lid Lock, Trunk Lid Strut
>>
51 24 350 Removing and installing/replacing electrical spindle drive for left tailgate (4' Series Gran Coupe sedan models)
>>
When using the spindle drive of the tailgate: Remount the funnel
When using the spindle drive of the tailgate: Remount the funnel

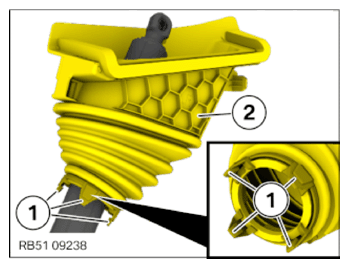

Release the detents
(1)
and guide out the funnel
(2)
over the spindle drive.
Courtesy of BMW OF NORTH AMERICA, INC.
Guide the funnel
(2)
over the new spindle drive and clip in with the detents
(1)
on the spindle drive.
Courtesy of BMW OF NORTH AMERICA, INC.
