Punch the contour of the 12 V socket
NOTE:
Schematic diagram is for example purposes. Some parts may differ in certain details.
- Measure the reference dimension on the template (1) and cut it out as shown.
- Place the template (1) as shown on the luggage compartment wheel arch trim panel (2) and attach it with the adhesive tape.
- Drill through a cylinder bore of ø 10 mm on the mark with the drill from the special tool 5 A63 022 .
- Remove the template (1).
- Install the special tool 5 A63 022 as shown and press together by turning the screw (1) clockwise.
- Release the screw (1) after cutting through the luggage compartment wheel arch trim panel and remove the special tool 5 A63 022
.

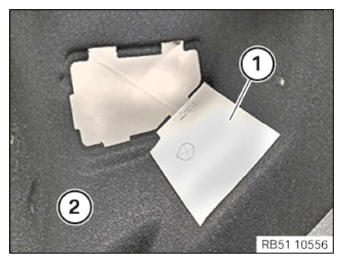

- Cut out the template (1) as shown, place it again and attach it with the adhesive tape.
- Carefully cut out the groove for the 12 V socket with a suitable tool from the luggage compartment wheel arch trim panel.
- Remove the template (1).
Follow-up work
- Refer to INSTALLING THE 12 V SOCKET IN THE LUGGAGE COMPARTMENT .
- Refer to INSTALLING LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL ON RIGHT .
- Refer to INSTALLING LOADING EDGE TRIM .
- Refer to IF INSTALLED: INSTALLING THE EMERGENCY WHEEL .
- Refer to INSTALLING LUGGAGE COMPARTMENT FLOOR COVERING .
