Installing loading edge trim

Check

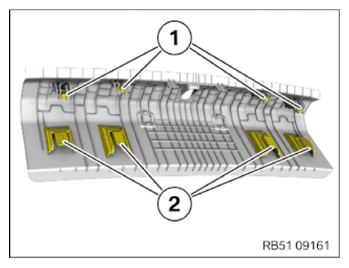

• Check the clamps (1) on the loading edge trim for damage.
• Check the guides (2) on the loading edge trim for damage.

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» Clamps (1) are damaged.

Measure

• Replace clamps (1).

  Parts:  Clamps

Result

» The guides (2) are damaged.

Measure

• Replace the loading edge trim.

  Parts:  Loading edge trim

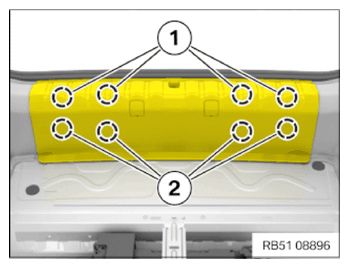

• Position the loading edge trim from above and guide it in with the guides (2).
• Guide the loading edge trim in under the sealing lip of the tailgate seal.
• Use the clamps (1) to clip in the loading edge trim downward.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING LUGGAGE COMPARTMENT FLOOR COVERING .
