Installing the upper trim panel on rollover protection system

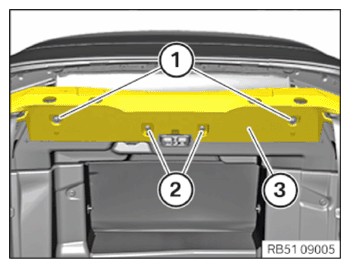

- Install the trim panel (3) and feed in the safety belts.

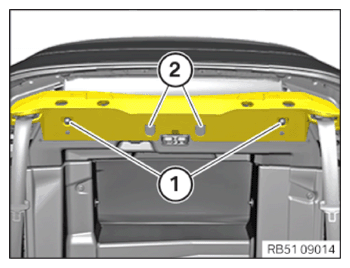

- Tighten the screws (1).TIGHTENING TORQUE SPECIFICATION
Stop pad to rollover protection system M6x20 screw Tightening torque 4.5 Nm - Tighten the screws (2).TIGHTENING TORQUE SPECIFICATION
Trim panel of rollover protection system to body Oval-head screw with guard control
Replace screwsTightening torque 3 Nm - Install cover panels (2).

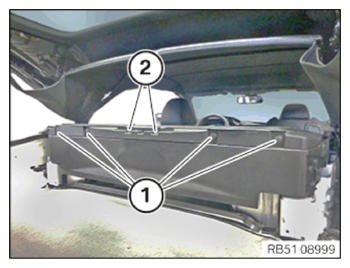

- Install the stop pad (1).
- Mount the expanding rivet on the left and right.
- Mount the expanding rivets (1).
- Tighten the screws (2).TIGHTENING TORQUE SPECIFICATION
Trim panel of rollover protection system to body Oval-head screw with guard control
Replace screwsTightening torque 3 Nm
Installing the rear strap fitting on the left and right
NOTE:
TECHNICAL INFORMATION
Clean all threaded belt connections with micro-encapsulated outer and internal threads.
Shavings or other debris must not remain in the components.
If a microencapsulated screw is reused, it must be coated with the following screw locking agent: Loctite 243, medium strength .
The screw connection must be completed within 10 minutes as hardening begins after this period.
Clean all threaded belt connections with micro-encapsulated outer and internal threads.
Shavings or other debris must not remain in the components.
If a microencapsulated screw is reused, it must be coated with the following screw locking agent: Loctite 243, medium strength .
The screw connection must be completed within 10 minutes as hardening begins after this period.
NOTE:
Description is for left component only. Procedure on the right side is identical.
Installing the strap fitting at the rear
NOTE:
TECHNICAL INFORMATION
Clean all threaded belt connections with micro-encapsulated outer and internal threads.
Shavings or other debris must not remain in the components.
If a microencapsulated screw is reused, it must be coated with the following screw locking agent: Loctite 243, medium strength .
The screw connection must be completed within 10 minutes as hardening begins after this period.
Clean all threaded belt connections with micro-encapsulated outer and internal threads.
Shavings or other debris must not remain in the components.
If a microencapsulated screw is reused, it must be coated with the following screw locking agent: Loctite 243, medium strength .
The screw connection must be completed within 10 minutes as hardening begins after this period.

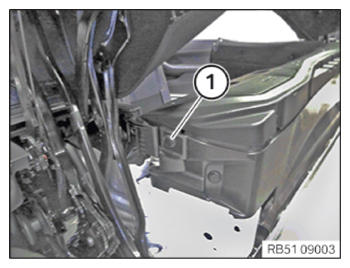

- Feed in and correctly position the strap fitting (2).
- Replace the screw (1).
Parts: Screw
- Tighten down screw (1).TIGHTENING TORQUE SPECIFICATION
End lining to body M10
Replace screw.Tightening torque 42 Nm
Follow-up work
- Refer to INSTALLING THE REAR LEFT AND RIGHT HEAD RESTRAINT GUIDES .
- Refer to INSTALLING REAR LEFT AND RIGHT HEAD RESTRAINTS .
- Refer to INSTALLING THE REAR SEAT .
